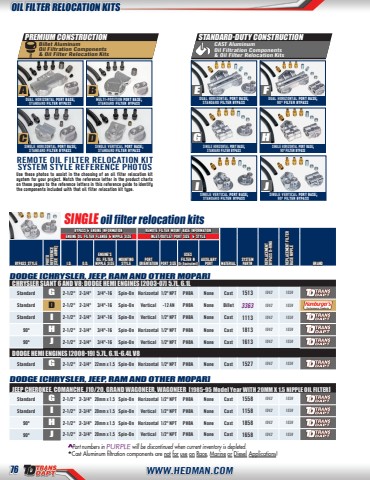

76 WWW.HEDMAN.COM Oil Filter Relocation Kitsbypass & engine information remote Filter mount base informationMATERIALSystemPart# Replacement Bypass O-ringReplacement Filter Base NippleBrandengine oil filter flange & Nipple Size inlet/outlet port size & styleBypass Style pHOTOrEFERENCE(See ABOVE)I.D. O.D.EngineOil Filter Nipple SizeMountingStylePortOrientation Port SizeFilter Size(Or Equivalent)AuxiliaryPortDodge [Chrysler, Jeep, Ram and Other Mopar]Chrysler Slant 6 and V8; Dodge hemi engines [2003-07] 5.7L, 6.1LStandard C 2-1/2\2-3/4\3/4\Spin-On Horizontal -12 AN PH8A 1/8\Billet 3353 1042 1034Standard G 2-1/2\2-3/4\3/4\Spin-On Horizontal 1/2\PH8A None Cast 1513 1042 1034Standard D 2-1/2\2-3/4\3/4\Spin-On Vertical -12 AN PH8A None Billet 3363 1042 1034Standard I 2-1/2\2-3/4\3/4\Spin-On Vertical 1/2\PH8A None Cast 1113 1042 103490%u00ba H 2-1/2\2-3/4\3/4\Spin-On Horizontal 1/2\PH8A None Cast 1813 1042 103490%u00ba J 2-1/2\2-3/4\3/4\Spin-On Vertical 1/2\PH8A None Cast 1613 1042 1034Dodge hemi engines [2008-19] 5.7L, 6.1L-6.4L V8Standard C 2-1/2\2-3/4\22mm x 1.5 Spin-On Horizontal -12 AN HP4 1/8\Billet 3357 1042 1066Standard G 2-1/2\2-3/4\22mm x 1.5 Spin-On Horizontal 1/2\PH8A None Cast 1527 1042 1034Standard D 2-1/2\2-3/4\22mm x 1.5 Spin-On Vertical -12 AN HP4 None Billet 3367 1042 1066Dodge/Ram Cummins Diesel 5.9L, 6.7LStandard C 2-1/4\3-11/16\1\Spin-On Horizontal -12 AN HP6 1/8\Billet 3358 1037 3334Standard D 2-1/4\3-11/16\1\Spin-On Vertical -12 AN HP6 None Billet 3368 1037 3334SINGLE oil filter relocation kitsUse these photos to assist in the choosing of an oil filter relocation kit system for your project. Match the reference letter in the product charts on these pages to the reference letters in this reference guide to identify the components included with that oil filter relocation kit type.Remote Oil Filter Relocation KitSystem Style Reference PhotosDual HorizontAL Port Base; Standard Filter BypassaMulti-Position Port Base; Standard Filter BypassbSingle Horizontal Port Base; Standard Filter BypasscSingle Vertical Port Base; Standard Filter BypassdDual HorizontAL Port Base; 90%u00ba Filter BypassFDual HorizontAL Port Base; Standard Filter BypasseSingle Horizontal Port Base; 90%u00ba Filter BypasshSingle Horizontal Port Base; Standard Filter Bypassg Single Vertical Port Base; 90%u00ba Filter BypassjSingle Vertical Port Base; Standard Filter BypassiBillet AluminumOil Filtration Components& Oil Filter Relocation KitsPremium Construction%u00abCast Aluminum filtration components are not for use on Race, Marine or Diesel Applications!Standard-Duty ConstructionCAST AluminumOil Filtration Components& Oil Filter Relocation Kits
