HTC Coated Hedders; 1-5/8 Photo of Hedman Hedders for 67-68 Camaro, 68-79 Nova 283-400 Photo of header reducers, gaskets and hardware included with Hedman Hedders This Product is MADE IN THE USA! HTC Coated Hedders; 1-5/8 Photo of Hedman's HTC Polished SIlver Ceramic Finish
Photo of Hedman's HTC Polished SIlver Ceramic Finish

Silver Long-Tube Headers For 67-81 Camaro, 68-79 Nova w/283-400

HTC Coated Headers; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These LONG-TUBE headers fit 1967-1981 Chevy Camaros, and 1968-1979 Chevy II and Nova models fitted with a SB Chevy (Gen 1) engine. The smooth 1-5/8 in tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

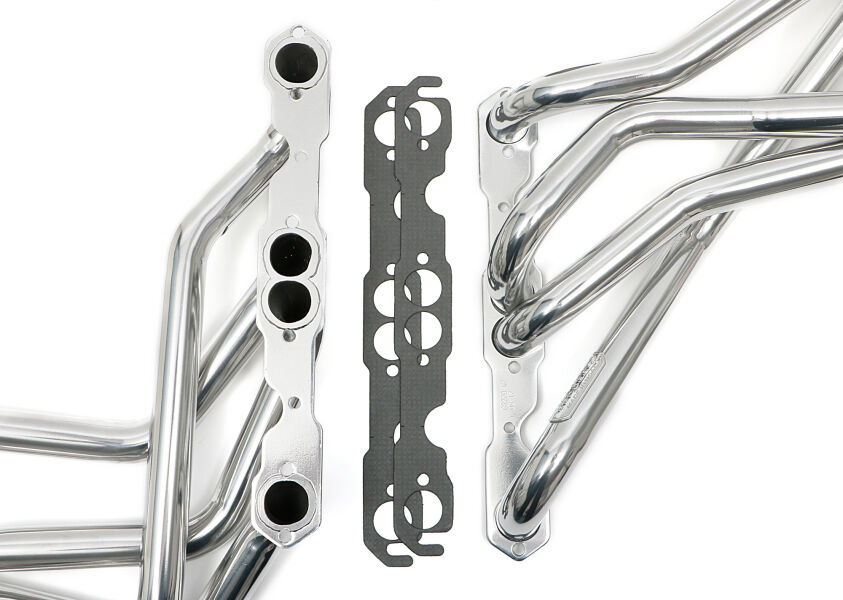

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.

Part#68276
$823.50
Find Local Dealer

Product Specifications

[PLEASE REVIEW THE FOLLOWING PRODUCT ATTRIBUTES & VEHICLE APPLICATION FOOTNOTES SPECIFIC TO YOUR VEHICLE, THOROUGHLY]

  • Tube Diameter 1-5/8 in.
  • Tube Style Long Tubes
  • Air Conditioning Yes
  • Air Conditioning Notes NO AC equipped Gen 1 Camaro or Gen 2 Nova; 70-Up with A/C require bracket 20110.
  • Automatic Transmission - Column Yes
  • Automatic Transmission - Floor Yes
  • Manual Transmission - Column No
  • Manual Transmission - Floor Yes
  • Collector Attachment 3 in.
  • Collector Diameter 3 in.
  • Collector Size 3 in.
  • Collector Style BALL and SOCKET Style (Gasketless)
  • Reducer Outlet Size 2-1/2 in.
  • Exhaust System Dia 2-1/2 in.
  • Contents Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
  • E.O. # No
  • Emissions Notes Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
  • Finish HTC Polished Silver Ceramic-Metallic
  • Finish Type HTC SILVER (polished) Ceramic-metallic Coating
  • Flange Style Standard
  • Flange Thickness 0.3125 in.
  • Header Port Shape Round
  • Header Style Long Tube
  • Notes 67-81 Camaro, 68-79 Nova 283-400
  • Port Shape Round
  • Power Steering Yes
  • Material Mild Steel
  • Tube Design Standard
  • Tube Length Long Tubes
  • Tube Material Thickness 16g
  • Tube Size 1-5/8 in.
  • Variations 68270, 68278
  • with A.I.R. System No
  • with EGR No
  • Weld-Up No
  • Tuned No
  • Bolts/Studs Included Yes
  • Catalytic Converter(s) Included No
  • Collector Bolts Included Yes
  • Crossover Pipe Included No
  • Gasket Or Seal Included Yes
  • Header Fasteners Included Yes
  • Installation Hardware Included Yes
  • Motor Mounts Included No
  • Mounting Hardware Included Yes
  • Reducers Included Yes
  • Y-Pipe Included No
  • Quantity Sold as a pair.
  • Primary Tube Gauge 16g
  • Primary Tube Diameter (in) 1.625 in.

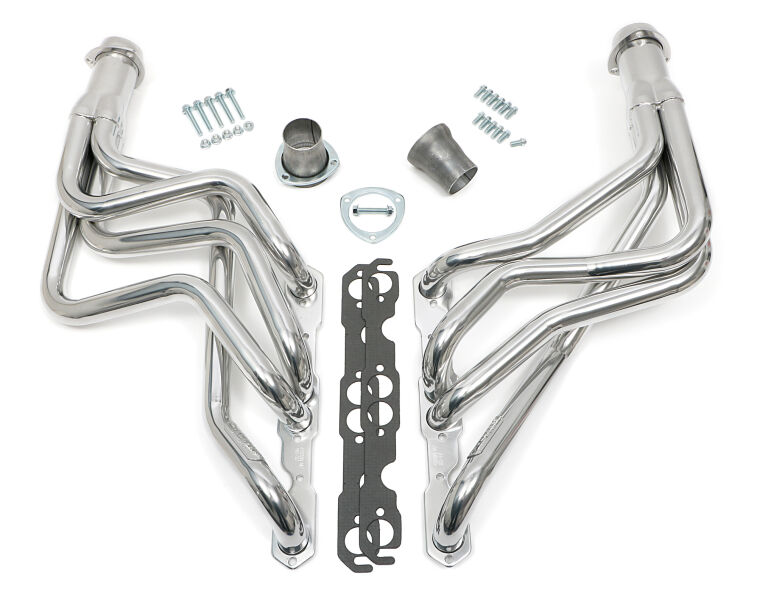

  • Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
  • Header Material Mild Steel
  • Header Finish HTC Polished Silver Ceramic-Metallic
  • Cylinder Head Port Shape Round
  • Cylinder Head Stock Profile Heads
  • Header Construction MILD STEEL- Standard-Duty
  • Replacement Gasket 27500
  • Replacement Head Flange Gasket 27500
  • California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

Vehicle Applications

      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNot for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (104) On some models it may be necessary to remove Z bars. (SS Series)
      (121) Must modify rotary A/C bracket.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
      Vehicle Specific Information
      Air ConditioningNo
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilySB Chevy 283-400 (Gen 1)
×
