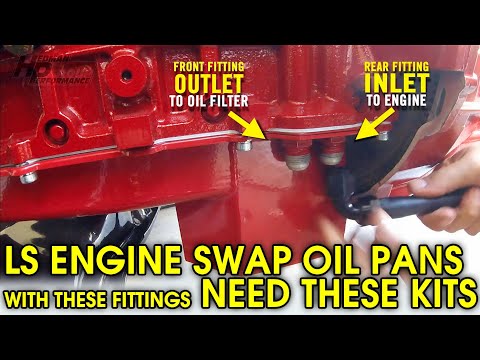

Photo of Oil filter relocation kit for use with steel LS engine swap oil pans. Photo of Single Oil Filter Relocation Kit For LS Oil Pans with-10AN fittings. Close-up of LS oil pan fittings with oil flow direction information. This video explains and installs an LS engine oil filter relocation system.

CAST ALUMINUM OIL FILTER INTEGRATION KIT FOR LS SWAP OIL PANS; SINGLE VERTICAL

CAST Aluminum, SINGLE FILTER, VERTICAL Port, Engine Oil Filter Integration System For Aftermarket Steel or Fabricated Aluminum LS Swap Oil Pans With -10AN Ports; Includes Remote Filter Base, Rubber Oil Lines, AN Fittings, Hose End Ferules

Part#1012
$168.02

Product Specifications

[PLEASE REVIEW THE FOLLOWING PRODUCT ATTRIBUTES & VEHICLE APPLICATION FOOTNOTES SPECIFIC TO YOUR VEHICLE, THOROUGHLY]

  • Contents Remote Filter Base, Oil Lines, Fittings, Filter Nipple
  • Filter Bypass Style No Bypass. Special LS Swap Pan Use
  • Filter Nipple Thread Size Special LS Swap Use
  • VEHICLE Oil Filter Nipple Size Special LS Swap Pan Use
  • VEHICLE Oil Filter Flange ID Special LS Swap Pan Use
  • VEHICLE Oil Filter Flange OD Special LS Swap Pan Use
  • Product Type LS Swap Oil Filter Integration Systems
  • Kit Type LS Swap Oil Filter Integration Kit Only
  • Port Size 1/2 in. NPT
  • Auxiliary Port None
  • Port Style Vertical
  • Material Cast Aluminum
  • Remote Filter Base Style SINGLE Filter, Vertical Port
  • Remote Base Filter Size PH8A (or equivalent)
  • Bypass Mounting Style Spin-On
  • Fitting Material Brass
  • Fitting Type Hose Barb
  • Fitting Quantity 4
  • Hose Connection Type Push Lock
  • Hose Length 30 in.
  • Vehicle Family Chevy Passenger Car- 1955-57
  • Vehicle Family X-Frame (GM) 1958-64
  • Vehicle Family A-Body (GM) 1964-67
  • Vehicle Family A-Body (GM) 1968-72
  • Vehicle Family A-Body (GM) 1973-77
  • Vehicle Family A-Body (GM) 1978-81
  • Vehicle Family B-Body (GM) 1971-76
  • Vehicle Family B-Body (GM) 1977-90
  • Vehicle Family B-Body (GM) 1991-96
  • Vehicle Family F-Body (GM) 1967-69
  • Vehicle Family F-Body (GM) 1970-74
  • Vehicle Family F-Body (GM) 1975-81
  • Vehicle Family F-Body (GM) 1982-92
  • Vehicle Family G-Body (GM) 1982-88
  • Vehicle Family X-Body (GM) 1962-67
  • Vehicle Family X-Body (GM) 1968-74
  • Vehicle Family X-Body (GM) 1975-79
  • Vehicle Family Corvette 1963-67
  • Vehicle Family Corvette 1968-82
  • Vehicle Family Corvette 1984-96
  • Vehicle Family C10/C15 Trucks and SUVs; 1967-72
  • Vehicle Family C10/C15 Trucks and SUVs; 1973-87
  • Vehicle Family C1500 Trucks and SUVs; 1988-98
  • Vehicle Family Chevy/GMC S10/S15 Family; 1982-04
  • Vehicle Family Factory SB Chevy Chassis
  • Vehicle Family FOX-Body (Ford) 1982-93
  • Replacement Nipple 1034
  • California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
  • For Use On Aftermarket LS Swap Engine Oil Pans
×
