Product Specifications

[PLEASE REVIEW THE FOLLOWING PRODUCT ATTRIBUTES & VEHICLE APPLICATION FOOTNOTES SPECIFIC TO YOUR VEHICLE, THOROUGHLY]

• Tube Diameter 1-1/2 in.
• Tube Style Mid-Length
• Air Conditioning No
• Automatic Transmission - Column No
• Automatic Transmission - Floor Yes
• Manual Transmission - Column No
• Manual Transmission - Floor Yes
• Power Steering No
• Collector Attachment 2-1/2 in.
• Collector Diameter 2-1/2 in.
• Collector Size 2-1/2 in.
• Collector Style BALL and SOCKET Style (Gasketless)
• Reducer Outlet Size 2 in.
• Exhaust System Dia 2 in.

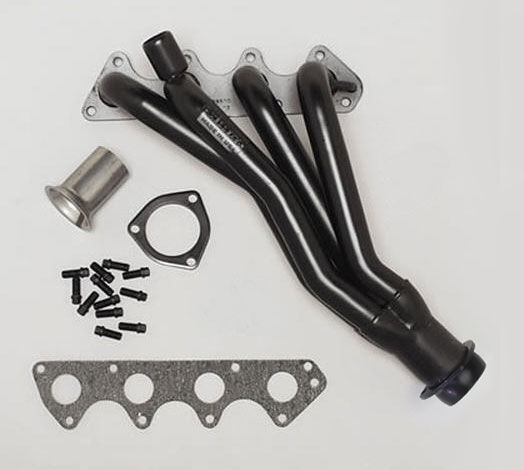

• Contents Headers, head flange gasket, 3-bolt exhaust adapters, mounting hardware
• E.O. # No
• Emissions Notes Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
• Finish Uncoated
• Finish Type UNCOATED Mild Steel! Shipped with Temporary Paint.
• Flange Style Standard
• Flange Thickness 0.375 in.
• Header Style Mid-Length Tube
• Notes 86-88 Suzuki Samurai 4wd 1.3L
• Material Mild Steel
• Tube Design Standard
• Tube Length Mid-Length Tubes
• Tube Material Thickness 16g
• Tube Size 1-1/2 in.
• Variations 39506
• with A.I.R. System No
• with EGR No
• Weld-Up No
• Tuned No
• Bolts/Studs Included Yes
• Catalytic Converter(s) Included No
• Crossover Pipe Included No
• Gasket Or Seal Included Yes
• Header Fasteners Included Yes
• Installation Hardware Included Yes
• Motor Mounts Included No
• Mounting Hardware Included Yes
• Reducers Included Yes
• Y-Pipe Included No
• Quantity Sold individually.
• Primary Tube Gauge 16g
• Primary Tube Diameter (in) 1.50 in.
• Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
• Header Material Mild Steel
• Header Finish Uncoated
• Cylinder Head Port Shape Round
• Cylinder Head Stock Profile Heads
• Header Construction MILD STEEL- Standard-Duty
• Replacement Gasket 27630
• Replacement Head Flange Gasket 27630
