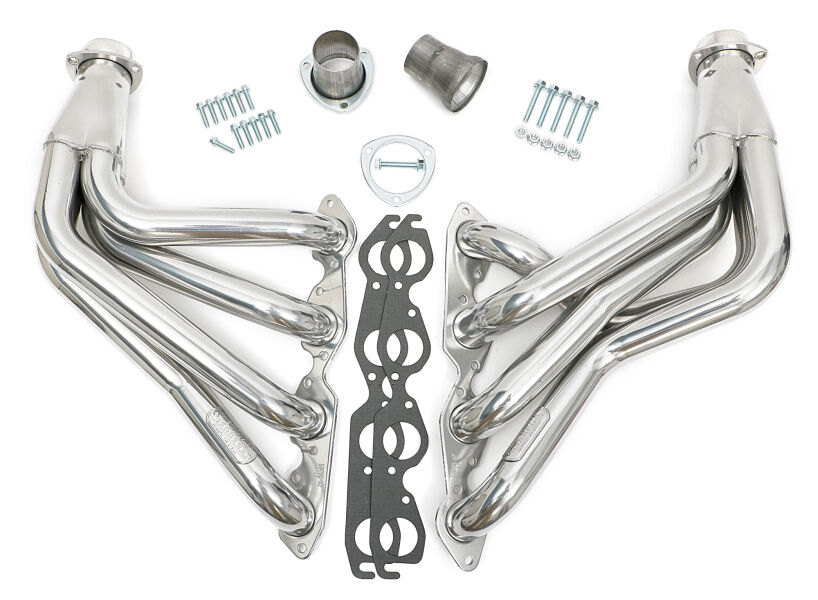

Photo of long tube headers for bb chevy corvette- Silver Ceramic Coated Photo of Hedman Hedders for 65-82 Corvette 396-502 HTC Coated Hedders; 2 Photo of header reducers, gaskets and hardware included with Hedman Hedders HTC Coated Hedders; 2 This Product is MADE IN THE USA! Photo of Hedman's HTC Polished SIlver Ceramic Finish

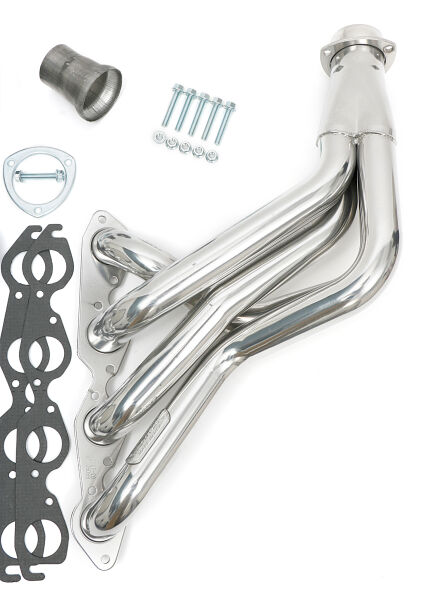

Photo of Hedman's HTC Polished SIlver Ceramic Finish

Silver Long-Tube Headers For 1965-82 Corvette 396-502

HTC Coated Headers; 2 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design

Part#68096
$846.01
Find Local Dealer

Product Specifications

[PLEASE REVIEW THE FOLLOWING PRODUCT ATTRIBUTES & VEHICLE APPLICATION FOOTNOTES SPECIFIC TO YOUR VEHICLE, THOROUGHLY]

  • Tube Diameter 2 in.
  • Tube Style Long Tubes
  • Air Conditioning Yes
  • Automatic Transmission - Column Yes
  • Automatic Transmission - Floor Yes
  • Manual Transmission - Column No
  • Manual Transmission - Floor Yes
  • Collector Attachment 3 in.
  • Collector Diameter 3 in.
  • Collector Size 3 in.
  • Collector Style BALL and SOCKET Style (Gasketless)
  • Reducer Outlet Size 2-1/2 in.
  • Exhaust System Dia 2-1/2 in.
  • Contents Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
  • E.O. # No
  • Emissions Notes Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
  • Finish HTC Polished Silver Ceramic-Metallic
  • Finish Type HTC SILVER (polished) Ceramic-metallic Coating
  • Flange Style Standard
  • Flange Thickness 0.3125 in.
  • Header Port Shape Round
  • Header Style Long Tube
  • Notes 65-82 Corvette 396-502
  • Port Shape Round
  • Power Steering Yes
  • Material Mild Steel
  • Tube Design Standard
  • Tube Length Long Tubes
  • Tube Material Thickness 16g
  • Tube Size 2 in.
  • Variations 68090
  • with A.I.R. System No
  • with EGR No
  • Weld-Up No
  • Tuned No
  • Bolts/Studs Included Yes
  • Catalytic Converter(s) Included No
  • Collector Bolts Included Yes
  • Crossover Pipe Included No
  • Gasket Or Seal Included Yes
  • Header Fasteners Included Yes
  • Installation Hardware Included Yes
  • Motor Mounts Included No
  • Mounting Hardware Included Yes
  • Reducers Included Yes
  • Y-Pipe Included No
  • Quantity Sold as a pair.
  • Primary Tube Gauge 16g
  • Primary Tube Diameter (in) 2 in.
  • Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
  • Header Material Mild Steel
  • Header Finish HTC Polished Silver Ceramic-Metallic
  • Cylinder Head Port Shape Round
  • Cylinder Head Stock Profile Heads
  • Header Construction MILD STEEL- Standard-Duty
  • Replacement Gasket 27540
  • Replacement Head Flange Gasket 27540
  • California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

Vehicle Applications

      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions Notes1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (25) Engine swap, all parts must be factory stock.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Engine FamilyBB Chevy 396-502 (MARK IV / GEN V)
×
