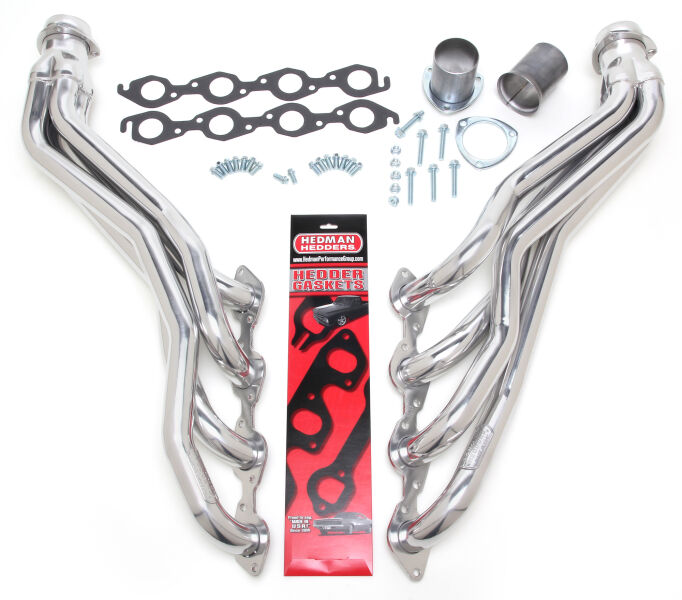

Photo of Big Block Chevy 3/4 and 1 ton truck headers. Also fit 454SS Photo of header reducers, gaskets and hardware included with Hedman Hedders This Product is MADE IN THE USA! Photo of Hedman's HTC Polished SIlver Ceramic Finish

SILVER LONG-TUBE HEADERS For '88-95 GM 2WD 2500-3500 7.4L TRUCKS

Standard-Duty, Polished Silver Ceramic-Coated Long Tube Headers For 1988-95 CHEVY/GMC 2WD 3/4 and 1 Ton Pick-Up Trucks with 7.4L Engine (Engine OFFSET to Passenger Side); 1-3/4 in. Long Tubes; 3 in. Ball/Socket Collector

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block 7.4L Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These HTC coated, LONG-TUBE headers fit 1988-95 2WD (only) 3/4 & 1 ton Chevy Trucks with a factory 7.4L Chevy powerplant (check the application listings for exact fitment). The smooth 1-3/4 in. tube design provides ample exhaust flow to let your OBS Chevy truck's Big Block engine breathe easy, and produce maximum horsepower and torque.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

Part#69456
$800.74
Find Local Dealer

Product Specifications

[PLEASE REVIEW THE FOLLOWING PRODUCT ATTRIBUTES & VEHICLE APPLICATION FOOTNOTES SPECIFIC TO YOUR VEHICLE, THOROUGHLY]

  • Tube Diameter 1-3/4 in.
  • Tube Style Long Tubes
  • Air Conditioning Yes
  • Automatic Transmission - Column Yes
  • Automatic Transmission - Floor Yes
  • Manual Transmission - Column No
  • Manual Transmission - Floor Yes
  • Footnotes 127. Late Model Chassis. ENGINE OFFSET to passenger side of vehicle.
  • Collector Attachment 3 in.
  • Collector Diameter 3 in.
  • Collector Size 3 in.
  • Collector Style BALL and SOCKET Style (Gasketless)
  • Reducer Outlet Size 2-1/2 in.
  • Exhaust System Dia 2-1/2 in.
  • Contents headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
  • E.O. # No
  • Emissions Notes Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
  • Finish HTC Polished Silver Ceramic-Metallic
  • Finish Type HTC SILVER (polished) Ceramic-metallic Coating
  • Flange Style Standard
  • Flange Thickness 0.3125 in.
  • Header Port Shape Round
  • Header Style Long Tube
  • Notes 88-95 1/2, 3/4, 1 Ton Truck/SUV 396-502
  • Port Shape Round
  • Power Steering Yes
  • Material Mild Steel
  • Tube Design Standard
  • Tube Length Long Tubes
  • Tube Material Thickness 16g
  • Tube Size 1-3/4 in.
  • Variations 69450, 69850
  • with A.I.R. System No
  • with EGR No
  • Weld-Up No
  • Tuned No
  • Bolts/Studs Included Yes
  • Catalytic Converter(s) Included No
  • Collector Bolts Included Yes
  • Crossover Pipe Included No
  • Gasket Or Seal Included Yes
  • Header Fasteners Included Yes
  • Installation Hardware Included Yes
  • Motor Mounts Included No
  • Mounting Hardware Included Yes
  • Reducers Included Yes
  • Y-Pipe Included No
  • Quantity Sold as a pair.
  • Primary Tube Gauge 16g
  • Primary Tube Diameter (in) 1.75 in.
  • Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
  • Header Material Mild Steel
  • Header Finish HTC Polished Silver Ceramic-Metallic
  • Cylinder Head Port Shape Round
  • Cylinder Head Stock Profile Heads
  • Header Construction MILD STEEL- Standard-Duty
  • Replacement Gasket 27530
  • Replacement Head Flange Gasket 27530
  • California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

Vehicle Applications

      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.
      (6) Modification to stock exhaust required to retain catalytic converter.
      Emissions NotesRACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.
×
