Photo of header reducers, gaskets and hardware included with Hedman Hedders This Product is MADE IN THE USA! Photo of Hedman's HTC Polished SIlver Ceramic Finish

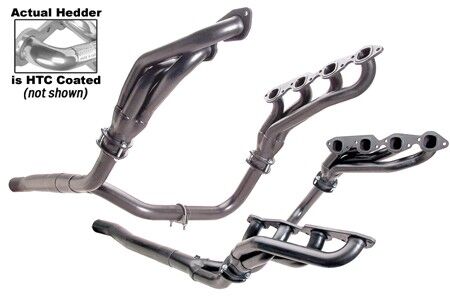

SILVER MID-LENGTH E.O. HEADERS, 88-95 GM 1 TON 2WD/4WD 7.4L TRUCKS

Standard-Duty, Silver Ceramic-Coated 50-State Legal Mid-Length Headers without A.I.R. For 1988-95 CHEVY/GMC 2WD/4WD 1 Ton Trucks and SUVs with 7.4L Engine (Engine OFFSET to Passenger Side); 1-3/4 in. Long Tubes; 3 in. Ball/Socket Collector

Part#69576
$946.21
Find Local Dealer

Product Specifications

[PLEASE REVIEW THE FOLLOWING PRODUCT ATTRIBUTES & VEHICLE APPLICATION FOOTNOTES SPECIFIC TO YOUR VEHICLE, THOROUGHLY]

  • Tube Diameter 1-3/4 in.
  • Tube Style Mid-Length
  • Air Conditioning Yes
  • Automatic Transmission - Column Yes
  • Automatic Transmission - Floor Yes
  • Manual Transmission - Column No
  • Manual Transmission - Floor Yes
  • Footnotes 127. Late Model Chassis. ENGINE OFFSET to passenger side of vehicle.
  • Collector Attachment Stock
  • Collector Diameter Stock
  • Collector Size Stock
  • Collector Style BALL and SOCKET Style (Gasketless)
  • Reducer Outlet Size Factory hookup
  • Exhaust System Dia 3 in.
  • Contents headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
  • E.O. # Yes
  • Emissions Notes EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
  • Finish HTC Polished Silver Ceramic-Metallic
  • Finish Type HTC SILVER (polished) Ceramic-metallic Coating
  • Flange Style Standard
  • Flange Thickness 0.375 in.
  • Header Port Shape Square
  • Header Style Mid-Length Tube
  • Notes 88-95 GM 1/2, 3/4, 1 Ton Truck/SUV 2-4WD
  • Port Shape Square
  • Power Steering Yes
  • Material Mild Steel
  • Tube Design Standard
  • Tube Length Mid-Length Tubes
  • Tube Material Thickness 16g
  • Tube Size 1-3/4 in.
  • Variations 69570
  • with A.I.R. System No
  • with EGR No
  • Weld-Up No
  • Tuned No
  • Bolts/Studs Included Yes
  • Catalytic Converter(s) Included No
  • Crossover Pipe Included Yes
  • Gasket Or Seal Included Yes
  • Header Fasteners Included Yes
  • Installation Hardware Included Yes
  • Motor Mounts Included No
  • Mounting Hardware Included Yes
  • Reducers Included No
  • Y-Pipe Included Yes
  • Crossover Pipe Style Y-pipe
  • Quantity Sold as a kit.
  • Primary Tube Gauge 16g
  • Primary Tube Diameter (in) 1.75 in.
  • Package Contents Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
  • Header Material Mild Steel
  • Header Finish HTC Polished Silver Ceramic-Metallic
  • Cylinder Head Port Shape Square
  • Cylinder Head Stock Profile Heads
  • Header Construction MILD STEEL- Standard-Duty
  • Replacement Gasket 27550
  • Replacement Head Flange Gasket 27550
  • California Proposition 65 WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov

Vehicle Applications

      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Notes3/4 Ton Models
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain2WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (121) Must modify rotary A/C bracket.
      (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Year C.I.D. Liter Block Type Cylinders Fuel Type Drive Type
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
      Vehicle Specific Information
      Air ConditioningYes
      Power SteeringYes
      Auto Transmission - ColumnYes
      Auto Transmission - FloorYes
      Manual Transmission - ColumnNo
      Manual Transmission - FloorYes
      Footnotes(0) T.E.M.S.(tm) Tubular Exhaust Manifold System.
      (1) Without smog injection or injection heads.
      (144) Complete with Y-Pipe to single catalytic converter.
      (15) Shortie style header. Maximum ground clearance.
      (225) Designed for use with a Trans-Dapt throttle body spacer.
      (38) 16 gauge tubing.
      (4) Includes parts necessary to retain emission devices. (50 State)
      Drivetrain4WD
      E.O. NumberD167-29
×
