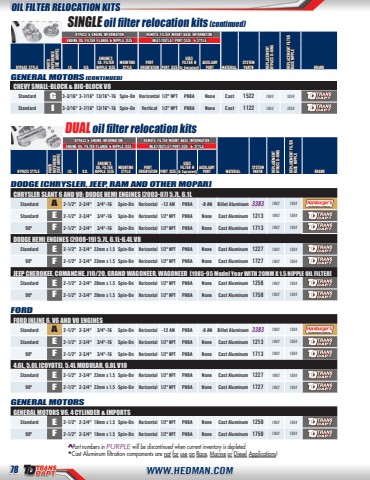

78 WWW.HEDMAN.COM Oil Filter Relocation KitsSINGLE oil filter relocation kits (continued)bypass & engine information remote Filter mount base informationMATERIALSystemPart# Replacement Bypass O-ringReplacement Filter Base NippleBrandengine oil filter flange & Nipple Size inlet/outlet port size & styleBypass Style pHOTOrEFERENCE(See ABOVE)I.D. O.D.EngineOil Filter Nipple SizeMountingStylePortOrientation Port SizeFilter Size(Or Equivalent)AuxiliaryPortgeneral motorsGeneral Motors V6, 4 Cylinder & ImportsStandard C 2-1/2\2-3/4\18mm x 1.5 Spin-On Horizontal -12 AN HP4 1/8\Billet 3356 1042 1066Standard G 2-1/2\2-3/4\18mm x 1.5 Spin-On Horizontal 1/2\PH8A None Cast 1550 1042 1034Standard D 2-1/2\2-3/4\18mm x 1.5 Spin-On Vertical -12 AN HP4 None Billet 3366 1042 1066Standard I 2-1/2\2-3/4\18mm x 1.5 Spin-On Vertical 1/2\PH8A None Cast 1150 1042 103490%u00ba H 2-1/2\2-3/4\18mm x 1.5 Spin-On Horizontal 1/2\PH8A None Cast 1850 1042 103490%u00ba J 2-1/2\2-3/4\18mm x 1.5 Spin-On Vertical 1/2\PH8A None Cast 1650 1042 1034Buick, Olds, Pontiac, Cadillac V8, 1999-06 GM LS [4.8, 5.3, 6.0L]Standard C 2-1/2\2-3/4\13/16\Spin-On Horizontal -12 AN HP4 1/8\Billet 3355 1042 1066Standard G 2-1/2\2-3/4\13/16\Spin-On Horizontal 1/2\PH8A None Cast 1520 1042 1034Standard D 2-1/2\2-3/4\13/16\Spin-On Vertical -12 AN HP4 None Billet 3365 1042 1066Standard I 2-1/2\2-3/4\13/16\Spin-On Vertical 1/2\PH8A None Cast 1120 1042 103490%u00ba H 2-1/2\2-3/4\13/16\Spin-On Horizontal 1/2\PH8A None Cast 1820 1042 103490%u00ba J 2-1/2\2-3/4\13/16\Spin-On Vertical 1/2\PH8A None Cast 1620 1042 1034LS Swap PanIntegration G NO BYPASS! Oil lines attach directly to -10ANfittings on Aftermarket LS swap oil pans Horizontal 1/2\ NPT PH8A None Cast 1014 No Bypass 1034LS Swap PanIntegration I NO BYPASS! Oil lines attach directly to -10ANfittings on Aftermarket LS swap oil pan Vertical 1/2\ NPT PH8A None Cast 1012 No Bypass 1034LS Swap PanIntegration c NO BYPASS! Oil lines attach directly to -10AN fittings on Aftermarket LS swap oil pans Horizontal -12 AN PH8A 1/8\ NPT Billet 3370 No Bypass 1034GM LS 2007-15 [4.8L, 5.3L, 6.0L]Standard C 2-1/2\2-3/4\22mm x 1.5 Spin-On Horizontal -12 AN HP4 1/8\Billet 3357 1042 1066Standard G 2-1/2\2-3/4\22mm x 1.5 Spin-On Horizontal 1/2\PH8A None Cast 1527 1042 1034Standard D 2-1/2\2-3/4\22mm x 1.5 Spin-On Vertical -12 AN HP4 None Billet 3367 1042 1066Standard I 2-1/2\2-3/4\22mm x 1.5 Spin-On Vertical 1/2\PH8A None Cast 1127 1042 103490%u00ba H 2-1/2\2-3/4\22mm x 1.5 Spin-On Horizontal 1/2\PH8A None Cast 1827 1042 103490%u00ba J 2-1/2\2-3/4\22mm x 1.5 Spin-On Vertical 1/2\PH8A None Cast 1627 1042 1034LS Swap PanIntegration G NO BYPASS! Oil lines attach directly to -10AN fittings on Aftermarket LS swap oil pans Horizontal 1/2\ NPT PH8A None Cast 1014 No Bypass 1034LS Swap PanIntegration I NO BYPASS! Oil lines attach directly to -10AN fittings on Aftermarket LS swap oil pan Vertical 1/2\ NPT PH8A None Cast 1012 No Bypass 1034LS Swap PanIntegration c NO BYPASS! Oil lines attach directly to -10AN fittings on Aftermarket LS swap oil pans Horizontal -12 AN PH8A 1/8\ NPT Billet 3370 No Bypass 1034Chevy Small-Block & Big-Block V8Standard C 3-3/16\13/16\Spin-On Horizontal -12 AN HP4 1/8\Billet 3354 1043 1066Standard G 3-3/16\13/16\Spin-On Horizontal 1/2\PH8A None Cast 1522 1043 1034Standard D 3-3/16\13/16\Spin-On Vertical -12 AN HP4 None Billet 3364 1043 1066Standard I 3-3/16\13/16\Spin-On Vertical 1/2\ NPT PH8A None Cast 1122 1043 1034%u00abCast Aluminum filtration components are not for use on Race, Marine or Diesel Applications!
